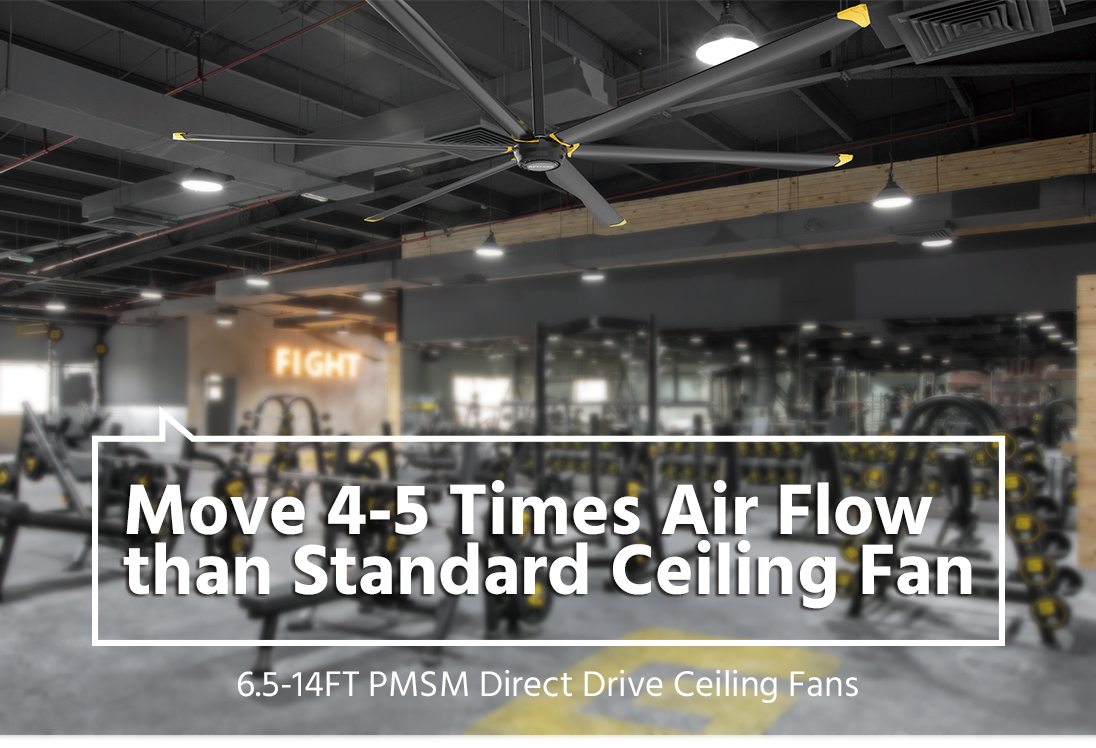

Navigator Series Ceiling Fans HVLS Fans for commercial Use

Short Description:

Upgrade to OPTFANS Navigator Series Ceiling Fans for a smarter, more sustainable cooling solution that combines cutting-edge technology with exceptional energy savings.

Send email to us Download as PDF

Product Detail

Product Tags

ELEGANT DESIGN ,SLEEKER CRAFTSMANSHIP, WHISPER-QUITE OPERATION

KEY FEATURES

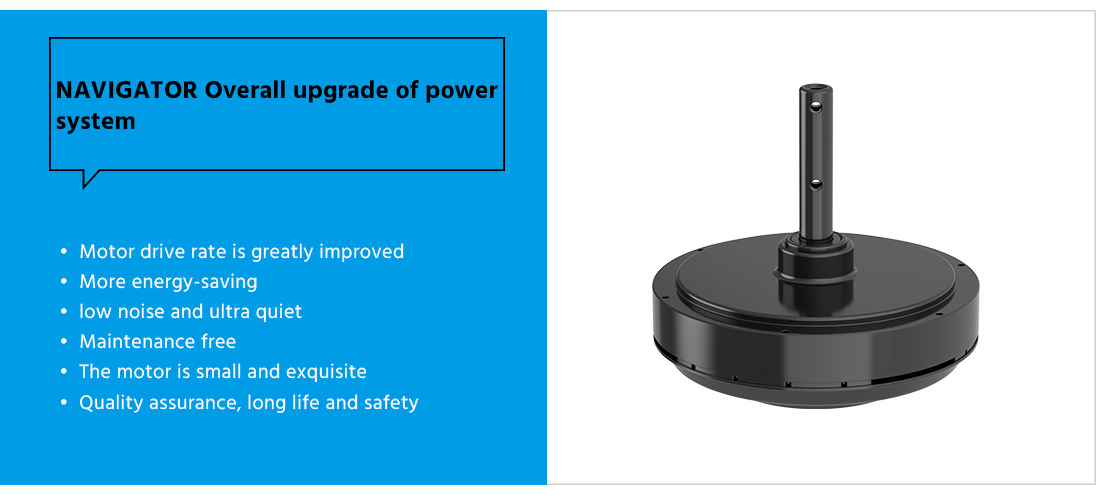

● PMSM Gearless DD motor with low cost investment and less power consumption and maintenance than most traditional cooling methods.

● Energy saving for cooling and ventilation provide eco-friendly solution.

● Assist in the removal of thermal stratification.

● Help reduce humidity and condensation on floors and equipment.

● Substantial energy savings on your air conditioning costs , up to 20% cost saving of your energy bills.

● Warranty ( Whole fans 2 years , fan blades lifetime ).

Model	Fans Diameter(m)ft	Motor Power (KW/HP)	Speed(Rpm)	Air volume(m³/min)	Full load current(A)380V	Weight(Kg)
NV-PMSM6	6.5ft (2.0m)	0.14	150	3,900	0.4	38
NV-PMSM8	8ft (2.5m)	0.26	130	4,550	0.8	41
NV-PMSM10	10ft (3.0m)	0.30	110	5,250	1.1	44
NV-PMSM12	12ft (3.6m)	0.33	95	6,560	1.3	78
NV-PMSM14	14ft (4.2m)	0.35	72	7,550	1.5	52
