OPTFANS New BIG HVLS Mobile Floor Fans Portable Fans for Gymnasium

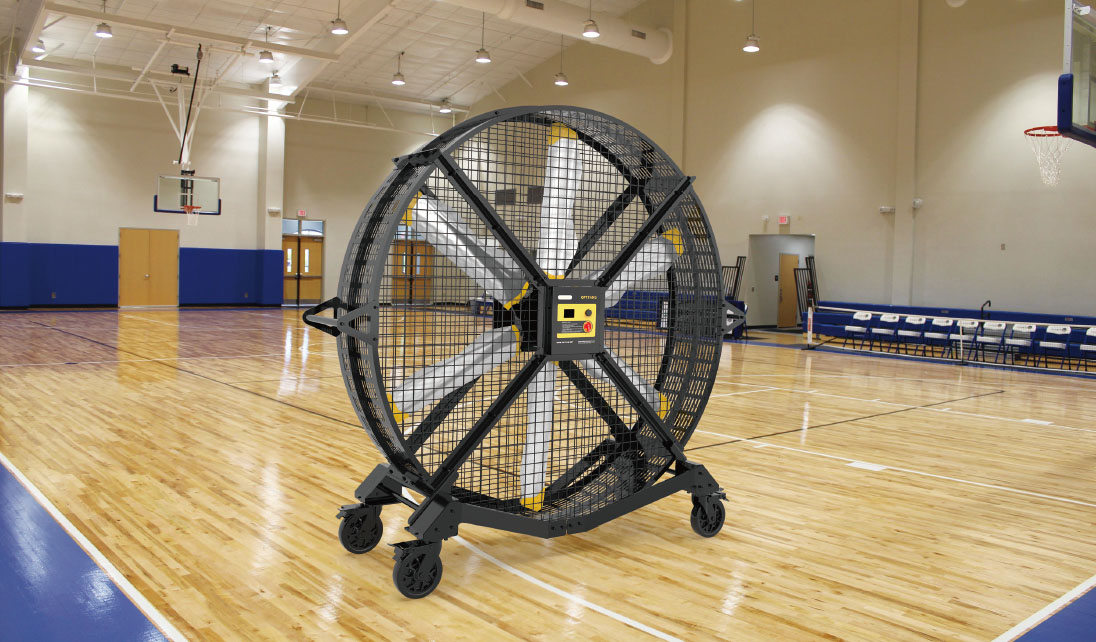

KT Series-2M Mobile Floor Fan

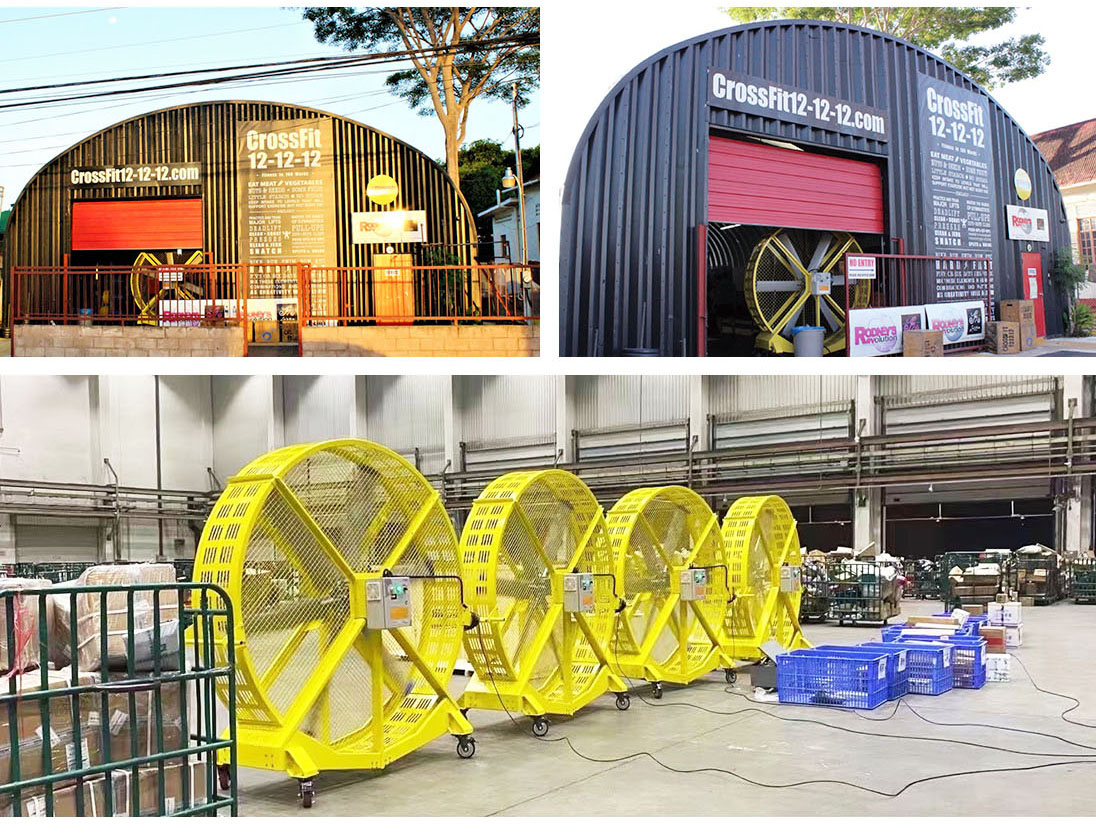

KT series are a kind of freely movable fan with large air volume, which are widely used in factories, workshops, exhibitions, outdoor events and other occasions. Four casters are designed to move freely to any place that needs cooling and ventilation indoors or outdoors.

KEY FEATURES

● High Efficiency

PMSM permanent magnet synchronous motor drives the fan blade, VFD stepless speed regulation,the operation is simple and convenient.

● Water Proof

PMSM Gearless motor is more precise, the motor is fully sealed, so that it can meet the IP55 protection standard,to different outdoor environment.

● Easy Movable & Free installation

The fan has casters that can move freely, which can adapt to the changing requirements of the workplace. The whole fan is modular design, which is flexible to install. Unpack the package, directly connect power use, free man labor & installation.

● Free Maintenance

Using electromagnetic induction principle, double bearing transmission, completely sealed, truly achieve motor maintenance free.

● Energy Saving

Using PMSM permanent magnet synchronous motor, the motor efficiency is up to 84% by STIEE detection. Reach the national energy efficiency 1st. class standard.

● Money Saving

The traditional asynchronous motor reducer fan needs to change the gear oil regularly. Using PMSM motor, it can save more money money in the long term!

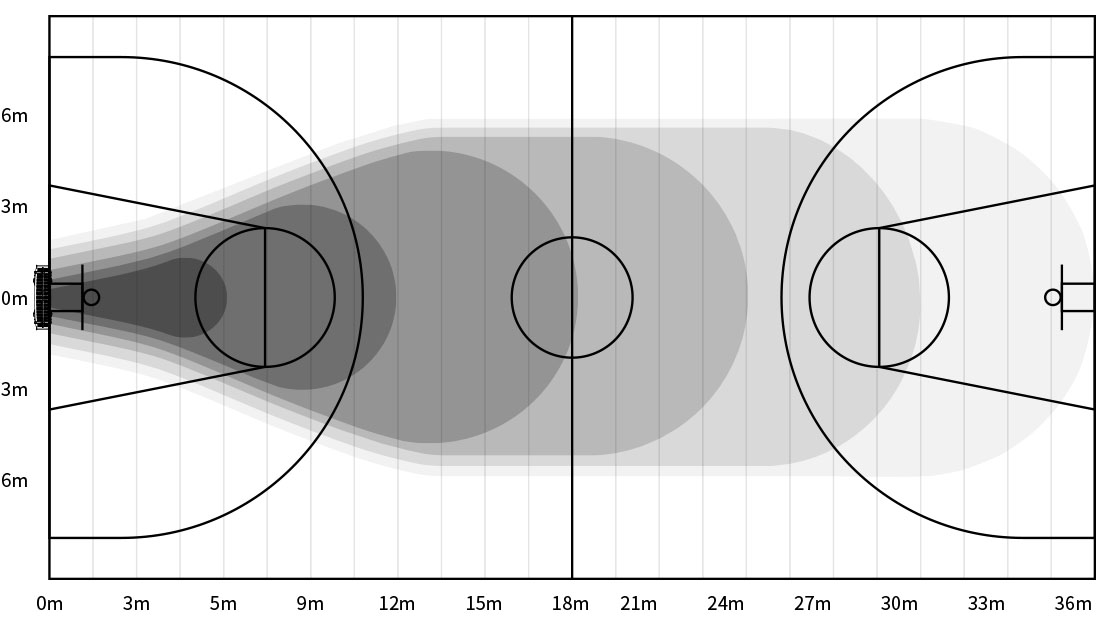

Air volume coverage (basketball court as sample)

KT 2m series can produce strong Wind , the effective air supply distance is more than 36 meters , coverage area can be across the semi solid basketball court . Not only in the large factory workshop channel has a very good performance , it can change position at any time according to the needs of work , so it can also be used in commercial venues and sports centers.

*The distance of air supply exceeds the length of the whole basketball court, reaching more than 36m; within the distance of 36m, the wind speed ranges from 7m/s to 1.5m/s (the farther the distance is, the lower the wind speed is). *This data is measured under the maximum speed of the fan, the motor is stepless speed regulation, and the speed range is 0-320rpm.

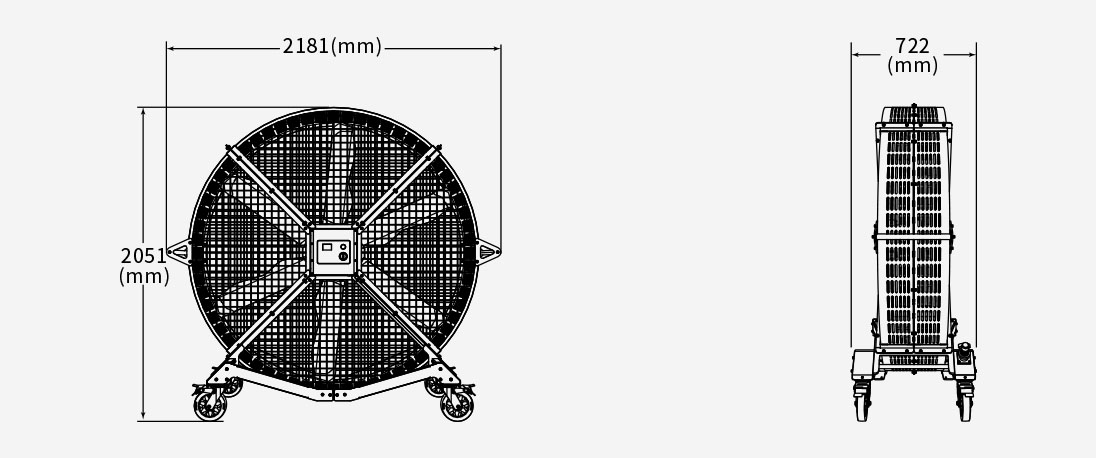

 Overall dimension
