OPTFANS Powerful Large Wall-mounted Fans Big Wall Fans

KG SERIES-2M WALL FAN

Kg fans is a 2M wall HVLS fans with permanent magnet synchronous motor,which is able to producehuge air volume with silence,also it can be installed on the beam.

KEY FEATURES

●Super air volume
The effective distance of air blowing is more than 36m;
●Directional air supply
There are two installation methods -ceiling and wall hanging, which can provide directional air supply according to the site environment demand;
●Energy saving
The energy consumption is very low with only 0.55KW,and the energy consumption cost is only a few yuan for a whole day;
●Quiet low noise
The noise level is 48dba. When the fan is running at the highest Speed;
●Stepless speed regulation
PMSM permanent magnet synchronous motor drives the fan blade, VFD stepless speed regulation,the operation is simple and convenient;
●Waterproof and dustproof
Protection level IP55, overall waterproof, can run normally in rainy and humid environment; easy to clean;

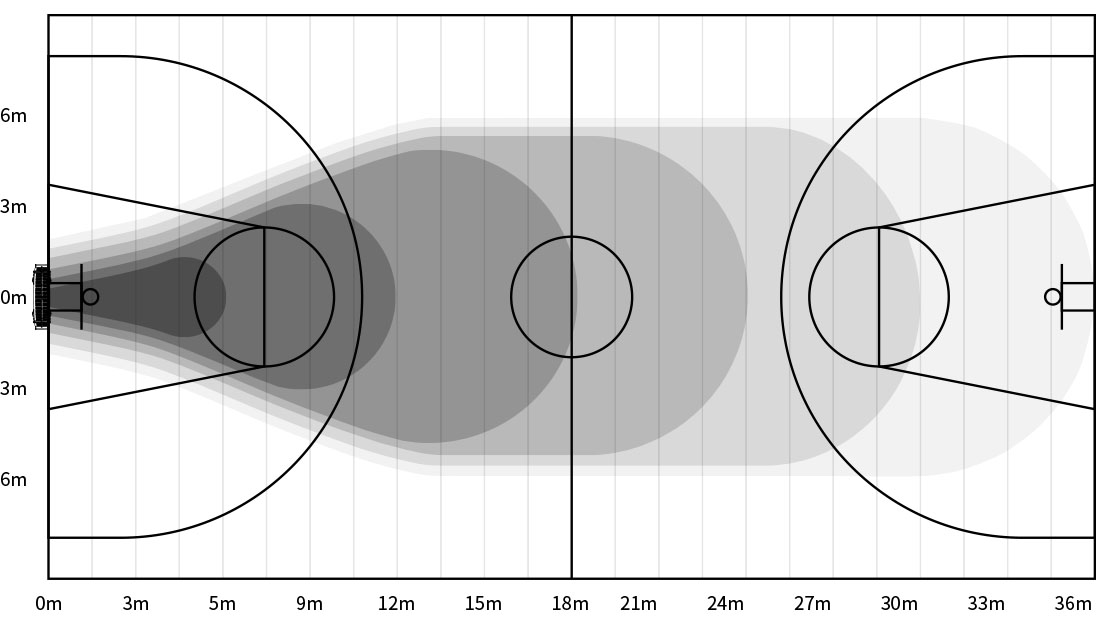

Air volume coverage (basketball court as sample)

KG series can produce strong Wind , the effective air supply distance is more than 18 meters , coverage area can be across the semi solid basketball court . Not only in the large factory workshop channel has a very good performance , it can change position at any time according to the needs of work , so it can also be used in commercial venues and sports centers.

*The distance of air supply exceeds the length of the whole basketball court, reaching more than 36m; within the distance of 36m, the wind speed ranges from 7m/s to 1.5m/s (the farther the distance is, the lower the wind speed is).
*This data is measured under the maximum speed of the motor, the motor is stepless speed regulation, and the speed range is 0-320rpm.

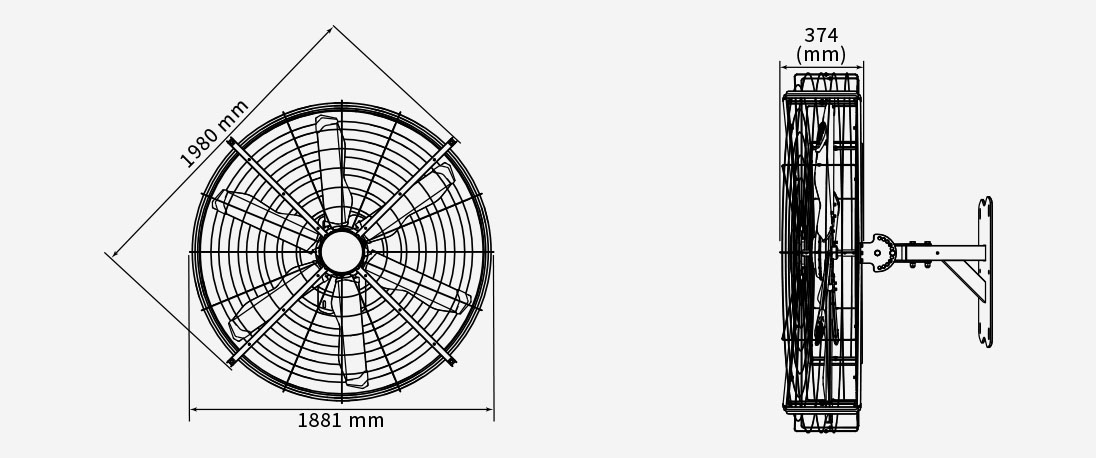

 Overall dimension
