SuperEx Series Large Ceiling fans

Short Description:

SuperEx Series

FOB Price: Contact us

Min.Order Quantity: 2

Supply Ability: 10000 Piece/Pieces per Month

Send email to us Download as PDF

Product Detail

Product Tags

NOVEL MOTOR TECHNOLOGY & HIGH-EFFICIENCY HEAT DISSIPATION STRUCTURE

KEY FEATURES

● Outstanding coverage without draft,fully encompassing air circulation.

● Super energy saving ,cut the HVAC and air condition cost up to 30% or replace them.

● Efficient cooling effect makes people feel 5-8 temperature cooling ,improve staff productivity.

● During the winter ,HVLS FAN mix the hot air produced by the heaters with the cold air ,reducing 30% heating costs.

● Consitent ventilation keep wet and moist area dryer and prevent hot air condensation .

● Warranty ( whole fan unit 2 years , fan blades and hub for lifetime ).

Model	Fans Diameter (m)ft	Motor Power (KW/HP)	Speed (Rpm)	Air volume (m³/min)	Full load current (A)380V	Weight (Kg)
OM-CU-7E	7.3m/24ft	1.5	10-54	13,800	5.1	112
OM-CU-6E	6.1m/20ft	1.2	10-60	12,200	3.8	101
OM-CU-5E	5.5m/18ft	0.7	10-64	11,100	2.9	93
OM-CU-4E	4.9m/16ft	0.6	10-72	10,500	2.2	89

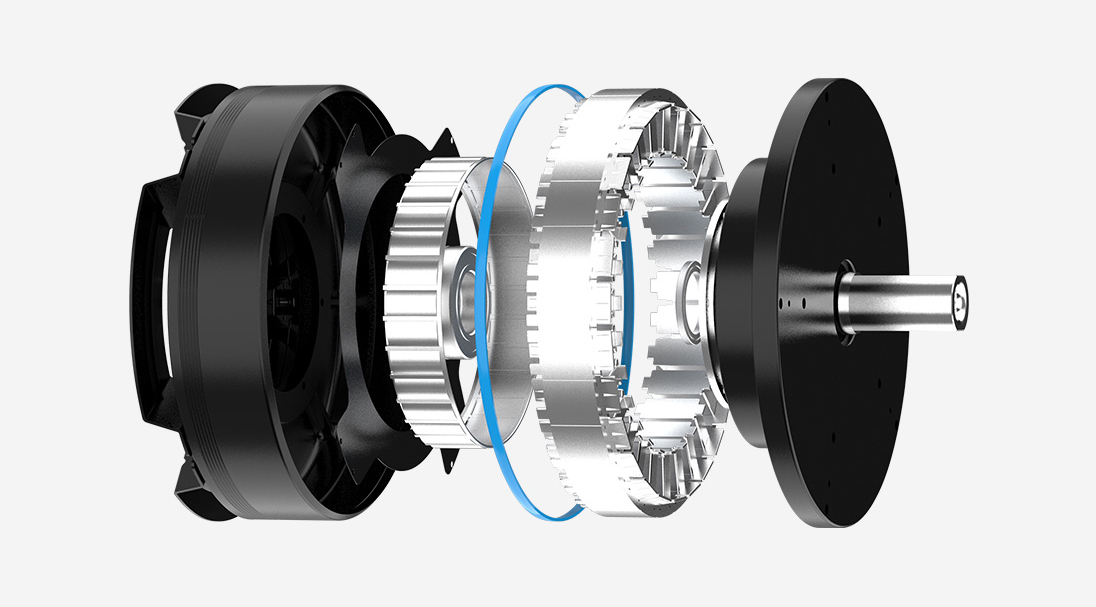

Leading Tech PMSM

●Insulation grade of motor

With class F design, the motor has better heat resistance and longer service life.

●Leading motor design technology

The motor has excellent heat dissipation performance, ultra-low temperature rise, and the temperature rise is about 20K lower than that of common products, so as to ensure the service life of fans.

●Large torque

The maximum torque of the motor can reach 280N.m,which ensure the air volume and power of the fans.

●Low noise

It can be used in commercial and industrial places with low noise.
