Email:chenzhenxiang@optfan.comSuperwing Series- HVLS PMSM Motor Commercial Ceiling Fans
SUPER LARGE INDUSTRIAL ENGRY-EFFICIENT FAN
KEY FEATURES
● PMSM gearless DD motor with freer maintenance,lower cost investment and less power consumption than most traditional cooling methods.
● Very quiet with noise level less than 39dBA,ideal for sounds concerns environment.
● Assit in the removal of thermal stratification,help reduce humidity and condensation on floors and equipment.
● One unit 24ft fan equal to 50 sets small size fans,up to 92% cost saving of energy bills.
● Substantial energy savings on your air conditioning costs,up to 50% cost saving of energy bills.
● Warranty (Whole fans 2 years,fan blades lifetime).
| Model | Fans Diameter (m)ft |
Motor Power
(KW/HP) |
Speed (Rpm) |
Air volume
(m³/min) |
Full load current
(A)380V |
Weight(Kg) |
| OM-PMSM-24 | 7.3m/24ft | 1.5 | 10-56 | 14,800 | 4.9 | 124 |
| OM-PMSM-20 | 6.1m/20ft | 1.1 | 10-60 | 12,900 | 4.4 | 120 |
| OM-PMSM-18 | 5.5m/18ft | 1.0 | 10-65 | 12,200 | 4.2 | 112 |
| OM-PMSM-16 | 4.9m/16ft | 1.0 | 10-75 | 11,500 | 4.0 | 108 |

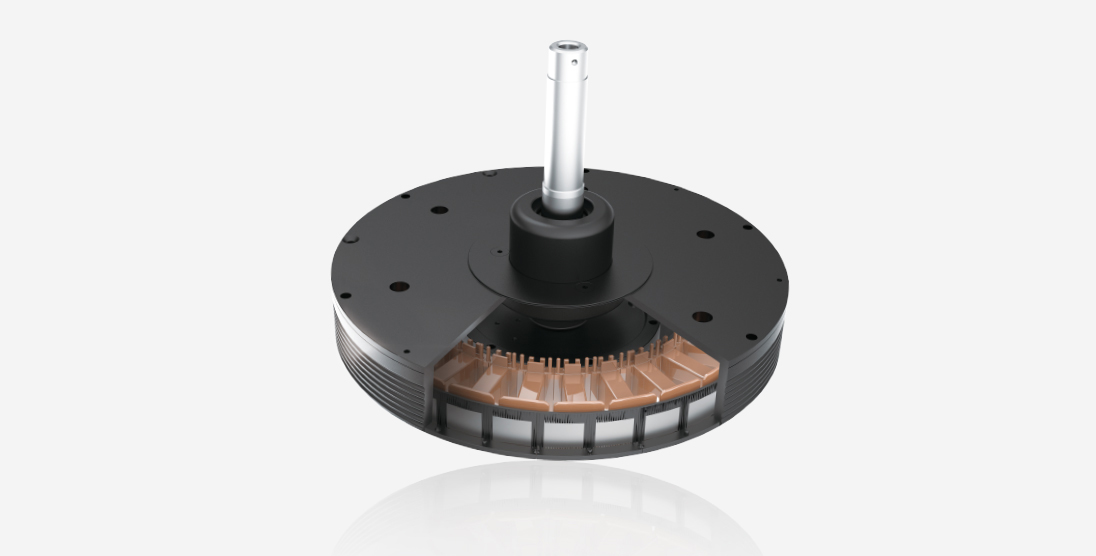

Leading Tech PMSM
| Design | Construction & Mounting |
| ●PMSM gearless direct drive Motor,Maintenance Free
●Fan size from 16-24ft,motor max torque 300N.m ●World’s strongest rare earth magnets (NdFeB,Grade N38SH),high electrical efficiency ＞84% ●High performance:energy saving ●Advanced smart controller provides easy integration to BMS and fire alarm system ●Ultra-efficient Aluminum Aerofoils blades and Robust construction |
●Designed with user’s comfort and safety in mind
●Static load components with unlimited life design ●Blends well into different construction profiles ●Multiple protections secure the fan to the mounting structure ●Fans are tested and simulated for best performance ●Double pivot adjustable mounting hardware |

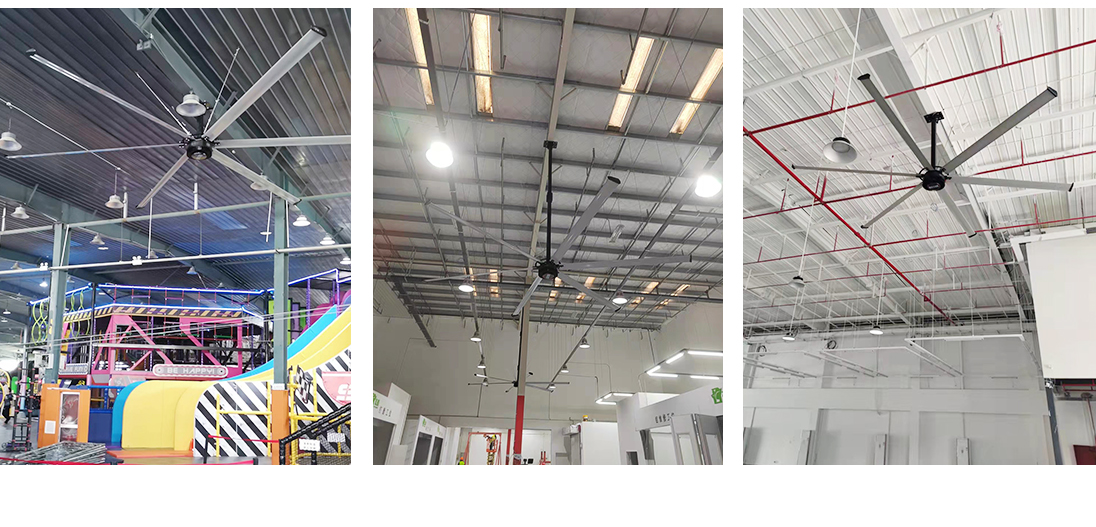

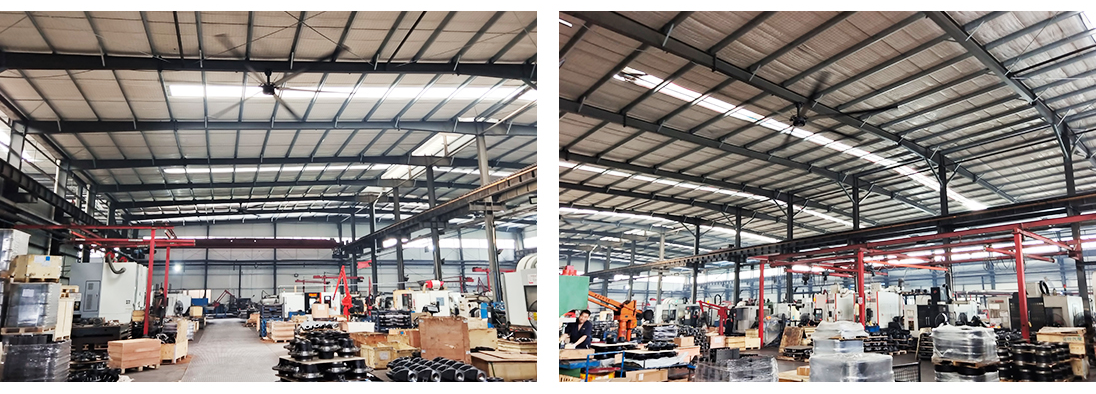

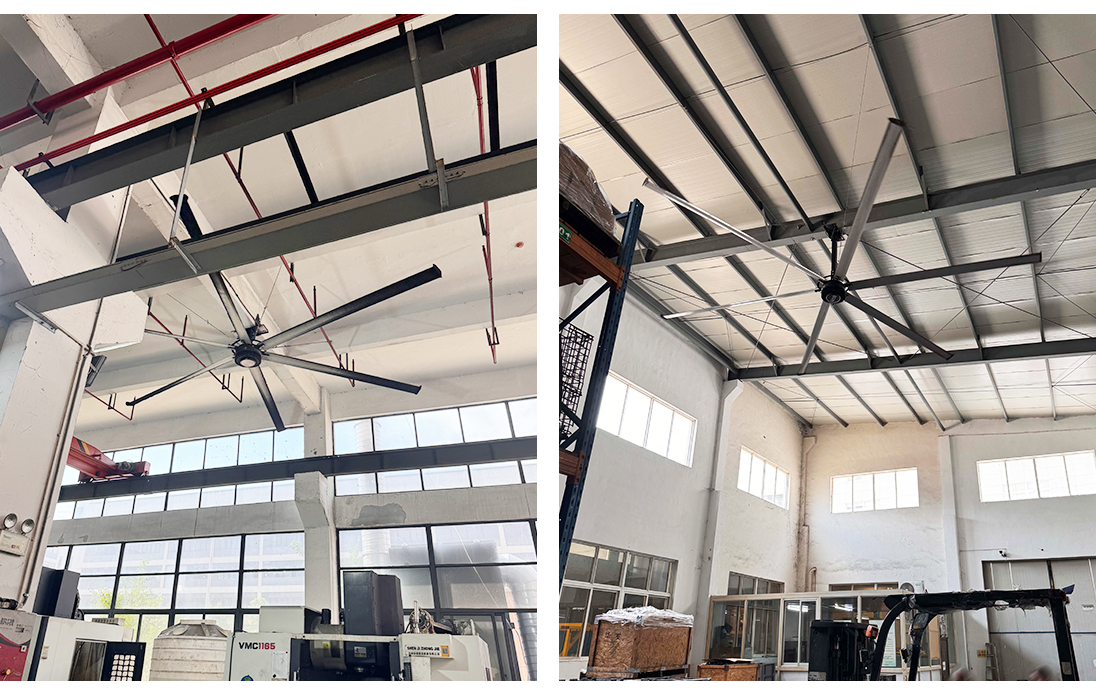

Case Presentation
FAQ
1. Which level of quality are your products?
We have got CE, ISO, SGS, TUV certificate so far.
2. Can the machine be customized as our need, such as put on our logo?
Surely our machine can be customized as your need, Put on your logo is also available.
